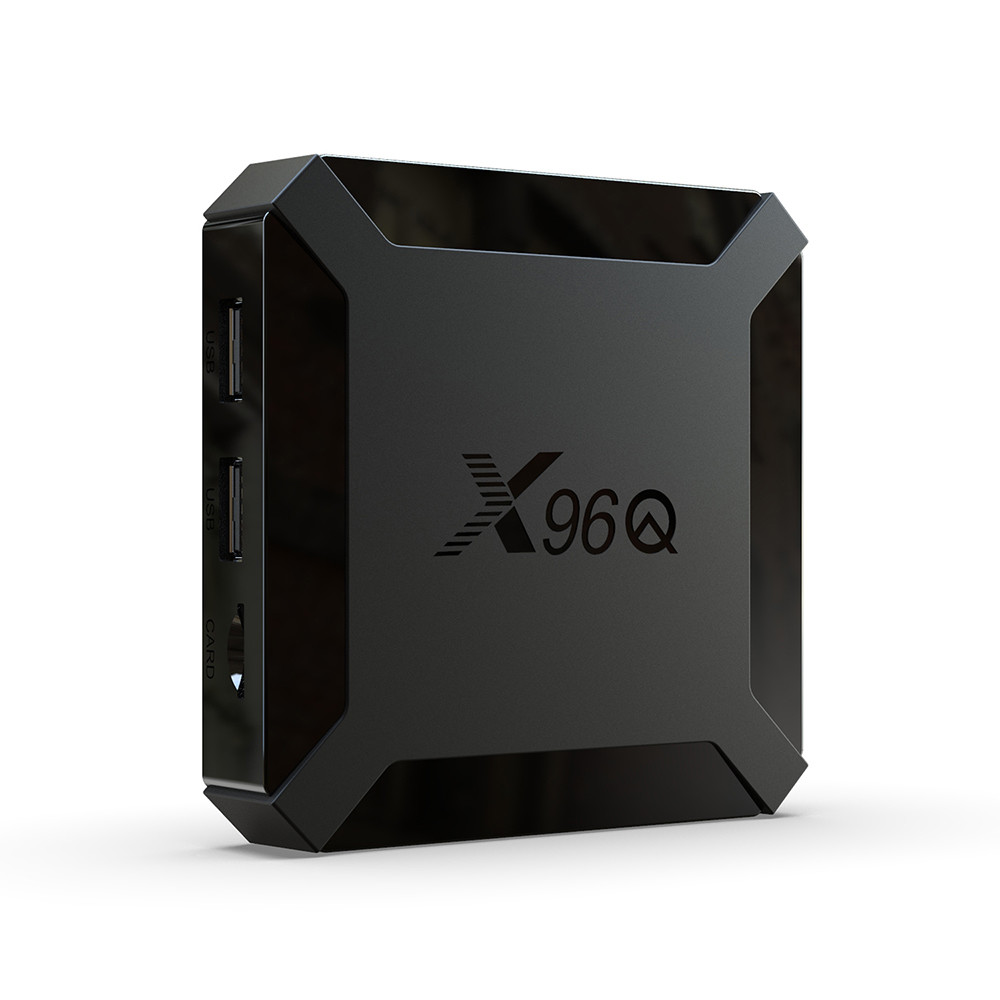

Android 10.0 Smart Box X96Q 2GB/16GB 1G/8G Allwinner H313 X96 TV Box Support 4K
Quik Specs:
| CPU | H313 Quad Core Tv Box |
| GPU | ARM Dvalin MP2 GPU |
| RAM | DDR3 1/2GB,8/16GB ROM emmc |
| OS | Android 10.0 |
| WIFI | 2.4G |
• Supports video decoding up to 4K@60fps
• Supports multi-formats:
- H.265 Main10@L5.1 up to 4K@60fps
- VP9 Profile 2 up to 4K@30fps
- AVS2 JiZhun 10bit Profile up to 4K@30fps
- H.264 BP/MP/HP@L4.2 up to 4K@30fps
- H.263 BP up to 1080p@60fps
- MPEG-4 SP/ASP@L5 up to 1080p@60fps
- MPEG-2 MP/HL up to 1080p@60fps
- MPEG-1 MP/HL up to 1080p@60fps
- Xvid up to 1080p@60fps
- Sorenson Spark up to 1080p@60fps
- VP8 up to 1080p@60fps
- AVS/AVS+ JiZhun Profile up to 1080p@60fps
- WMV9/VC1 SP/MP/AP up to 1080p@60fps
- JPEG HFIF file format up to 45MPPS
H.264 BP/MP/HP
• H.264 supports I/P frame, and only supports single reference frame
• MJPEG/JPEG baseline
• Maximum 16-megapixel(4096 x 4096) resolution for H.264 encoding
• H.264 encoding capability: 1080p@60fps
• JPEG snapshot performance of 1080p@60fps independently
• Supports the constant bit rate(CBR)ariable bit rate(VBR) bit rate control mode, ranging from 256kbit/s to
100Mbit/s
• Encoding of eight regions of interest(ROIs)
