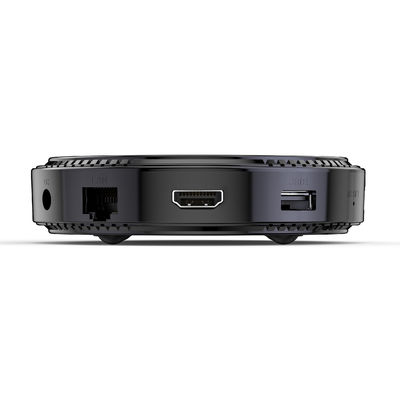

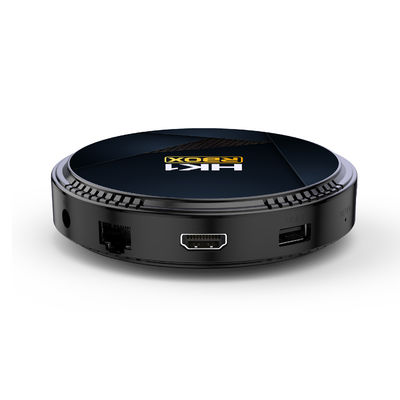

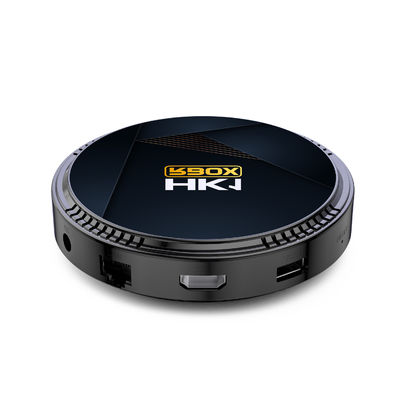

HK1 RBOX H8S H618 HD Android 12 ODM OEM TV Set Top Box Dual WiFi BT 6K Smart Android Box
| HK1 RBOX-H8 WIFI6 | ||||
| Basic parameters | ||||
| CPU | Chipset | Allwinner H618 1.5GHZ | ||
| Architecture | Quad Core ARM Cortex A53 | |||
| GPU | Chipset | Mali G31 MP2 | ||
| Storage | RAM | 2GB/4GB DDR3 | ||
| ROM | 16GB/32GB/64GB EMMC | |||
| External Storage | USB Storage Devices | Supported | ||
| Software | ||||
| Operating system | OS Version | Android 12 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Video Decoder: | ||
| H265 Main10 L5. 1 decoder up to 4K 60fps or 6K 30fps | ||||
| VP9 Profile 2 decoder up to 6K 30fps | ||||
| AVS2 Jizhun 10bit decoder up to 4K 60fps | ||||
| H.264 BP/MP/HP L4.2 decoder up to 4K 30fps | ||||
| Multi-format 1080p 60fps video playback formats ,including H.264 BP/MP/HP , H 263 BP , VP8 , MPEG-1 MP/HL ,MPEG-2 MP/HL , MPEG-4 SP/ASP L5 , AVS +/AVS JizhunWMV9/VC1 , etc | ||||
| Video Encoder: | ||||
| H.264 BP/MP/ HP encoder up to 4K 25fps or 1080p 60fps JPEG snapshot performance of 1080p 60fps | ||||
| Audio | MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG,BMP,GIF,PNG,TIF | |||
| Network service | ||||
| Wi-Fi | Type | IEEE802. a/b/g/n/ac /ax | ||
| Frequency | 2.4GHz, 5.8GHz | |||
| Antenna Type | Inside antennas | |||
| BT | BT | BT5.0+ | ||
| Interface | ||||
| Charge | DC connector | DC 5V- 2A | ||
| Video output | HD | 1* 4K 2K Output, HDMI 2.0a | ||
| Ethernet | Ethernet | 1*Default 100M | ||
| TF Card | External memory | 1* TF Card | ||
| USB port | USB Host | 2 * USB 2.0 | ||
| Upgrade | KEY | OTA Update online | ||
| Others | Support Email,office suit,HDD, U Disck, 2.4G wireless mouse/keyboard etc. | |||
| Appearance | ||||
| Body Material | Plastic | |||
| Color | Black | |||
| Size | 108*108*26mm | |||
| Weight | 135g | |||
| Cerifications(For Unit) | ||||
| Standard | CE | YES | ||
| RoHS | YES | |||
| Others | Optional | / | ||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 190*130*55mm | |
| Gift Box | *1 | Carton Size(mm) | 390*280*270mm | |
| Remote control | *1 | Qty Per Carton(pcs) | 20pcs | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | 0.32Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 7.0Kg | |
